EMV

MECHANICAL ACTUATED SEISMIC VALVE

GAS NETWORKS AND INDUSTRIAL PIPELINES

EMV
EMV

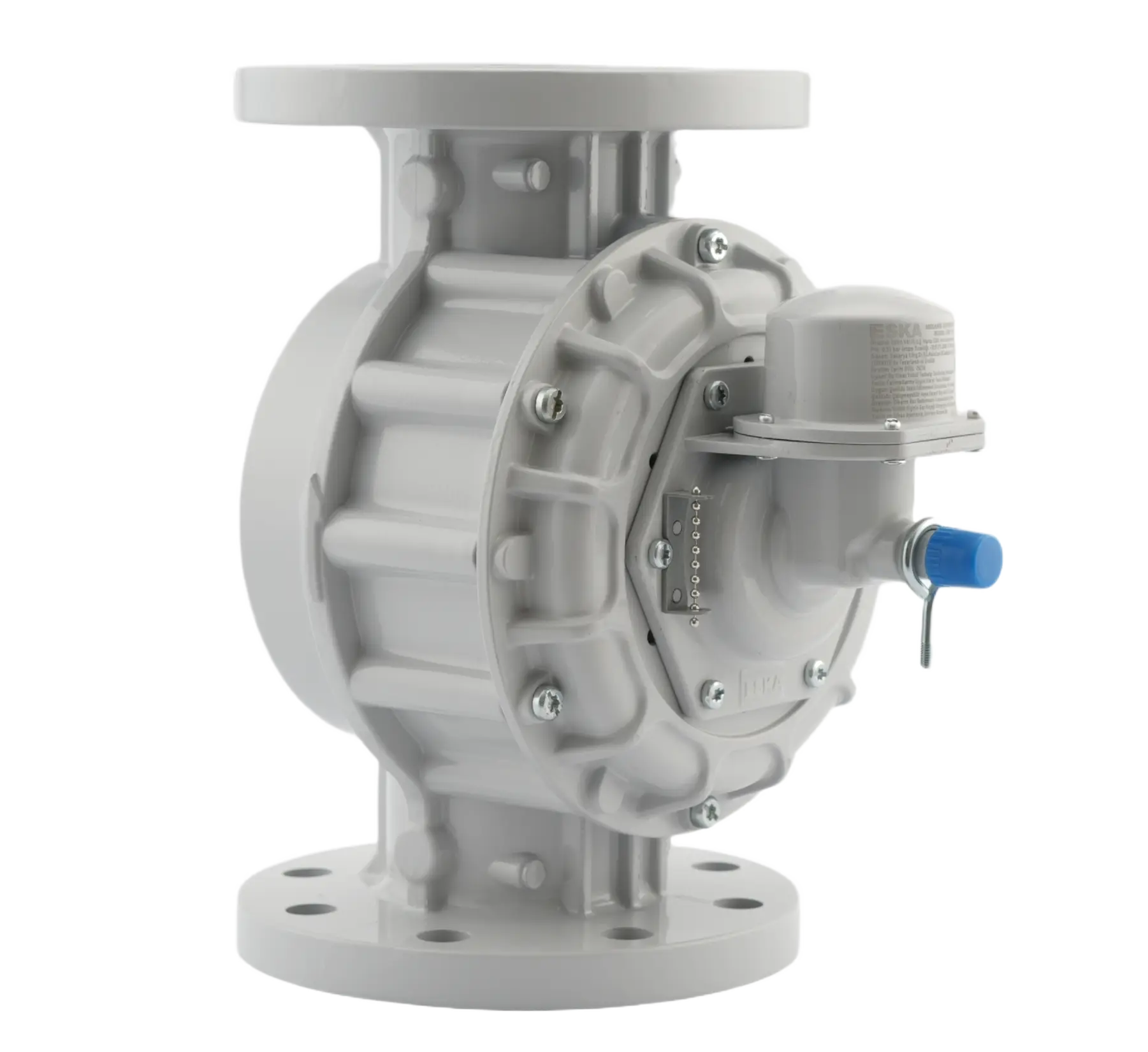

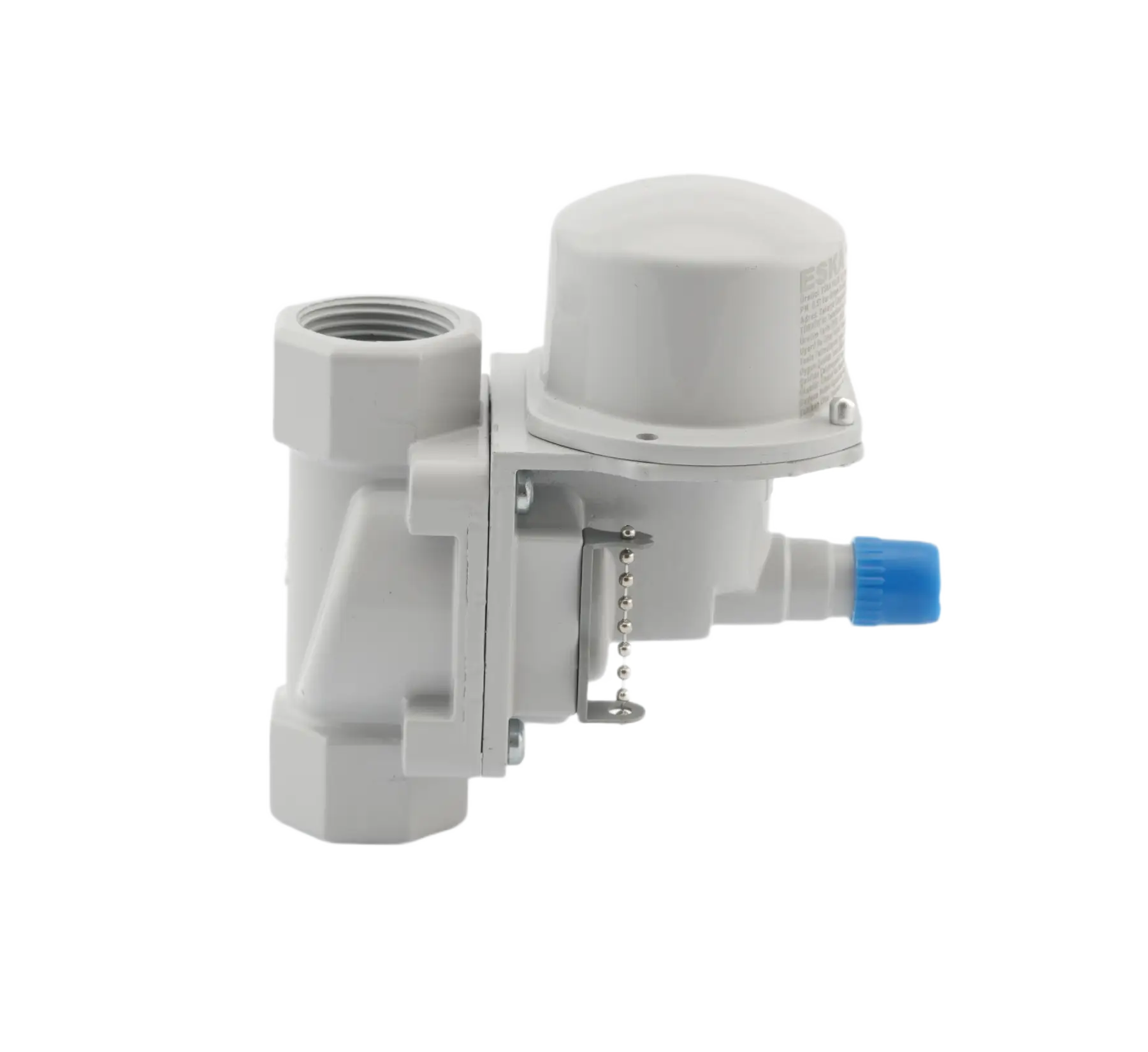

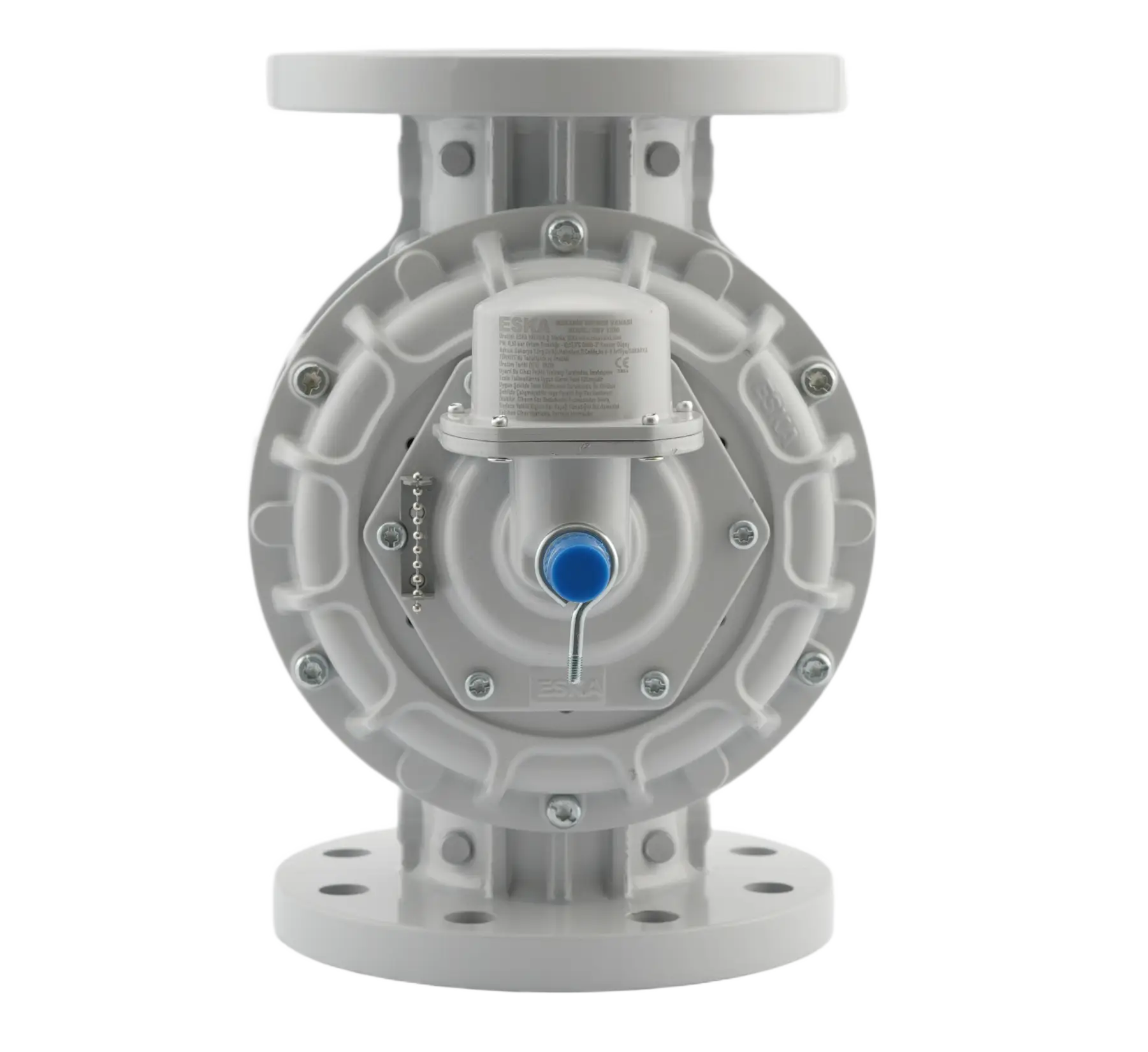

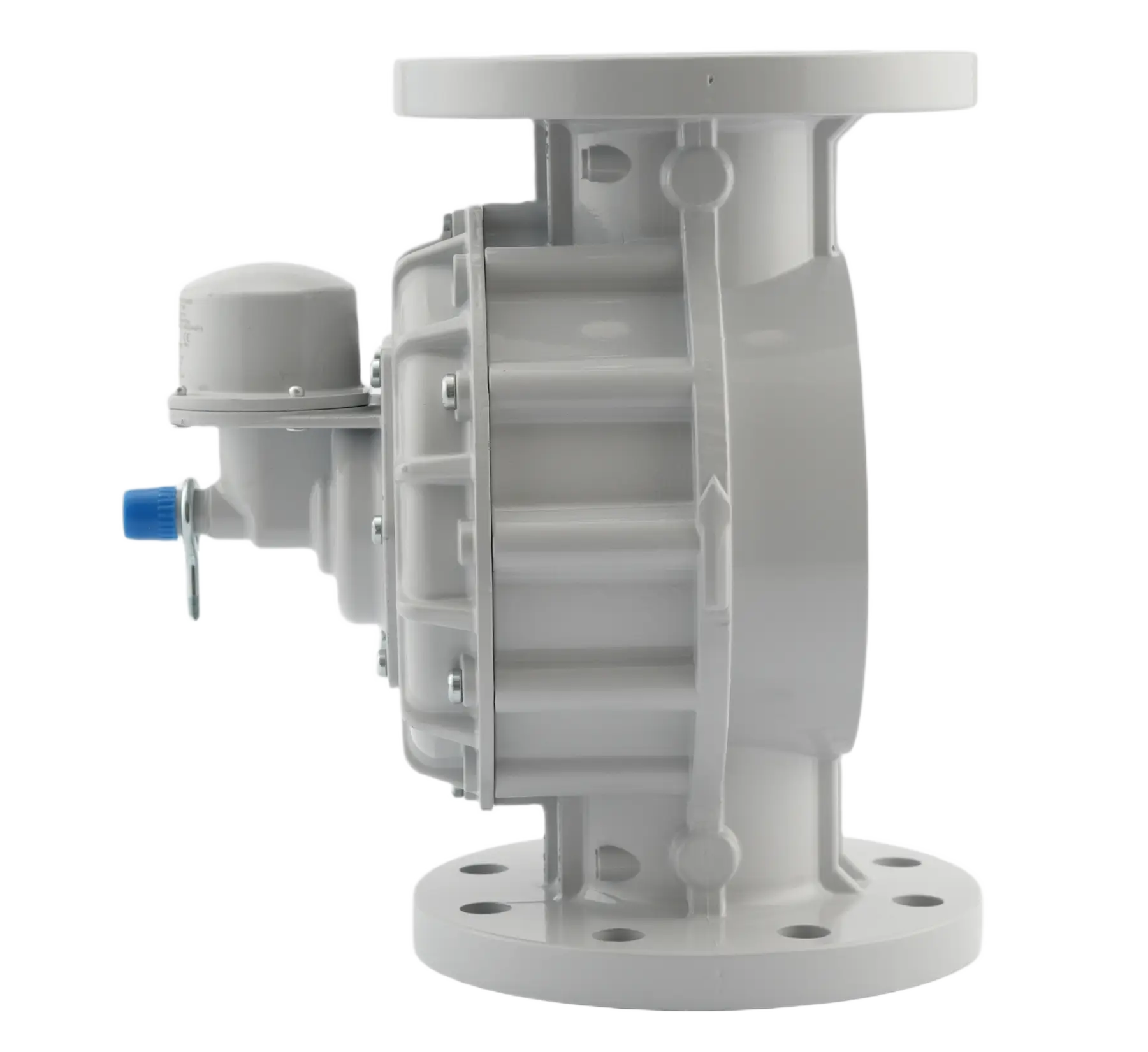

ESKA EMV Series Earthquake Valve is a shut-off valve which is activated during seismic oscillation. Activation and non-activation waves are defined in TS 12884 Turkish Standard. This Turkish standard was created based on ANSI Z11 standard in United States.

Once mechanical actuation system senses the seismic oscillation, valve shuts the gas off and you should rearm manually in order to reactivate gas flow. This valve basicaly is a manual reset, normally open gas valve. Main aim is  to decrease the risk of gas leakage related fire, when earthquake occurs. In countries this safety system is available, main regulation is done by fire safety department.

Specifications

  • MediumNon‐corrosive gases such as Natural Gas (Methane), LPG, Town Gas, Air, etc...
  • Connection or Port Size1”, 11/4”, 11/2”, 2” Threaded (Female) and DN65, DN80 ,DN100 Flanged
  • Positionnormally open
  • Montage positionVertical
  • Maximum working pressure0,5 bar
  • Ambient Temperature‐23°C up to 51,5°C
  • Resetmanually
  • Material StandardAluminum-EN 1706 /Brass EN12164 and EN12165 /Rubber-EN 549
