EGV

MANUAL RESET GAS VALVE

GAS NETWORKS AND INDUSTRIAL PIPELINES

EGV
EGV

ESKA EGV series ,manually adjusted gas valves, are used for  safety purposes in the gas lines to automatically stop the gas flow by the effect of the signals given by the third party equipments such as gas alarm detectors, ventilation devices etc.

Specifications

  • MediumNon‐corrosive gases such as Natural Gas (Methane), LPG, Town Gas, Air, etc...
  • Positionnormally open
  • Connection or Port Size½, ¾, 1”, 11/4”, 11/2”, 2” Threaded (Female) and DN65, DN80 ,DN100 Flanged
  • Maximum working pressure0,5 bar
  • Working voltage range12V,220V AC or DC ( On request other voltages )
  • Ambient Temperature‐20°C up to 60°C
  • Protection classIP54
  • Voltage Tolerance+-%10
  • Response Timeless than a second
  • Resetmanually
  • Material StandardAluminum-EN 1706 /Rubber-EN 549
Specifications

Different Sizes

EGV 1015-1020-1025
EGV 1015-1020-1025

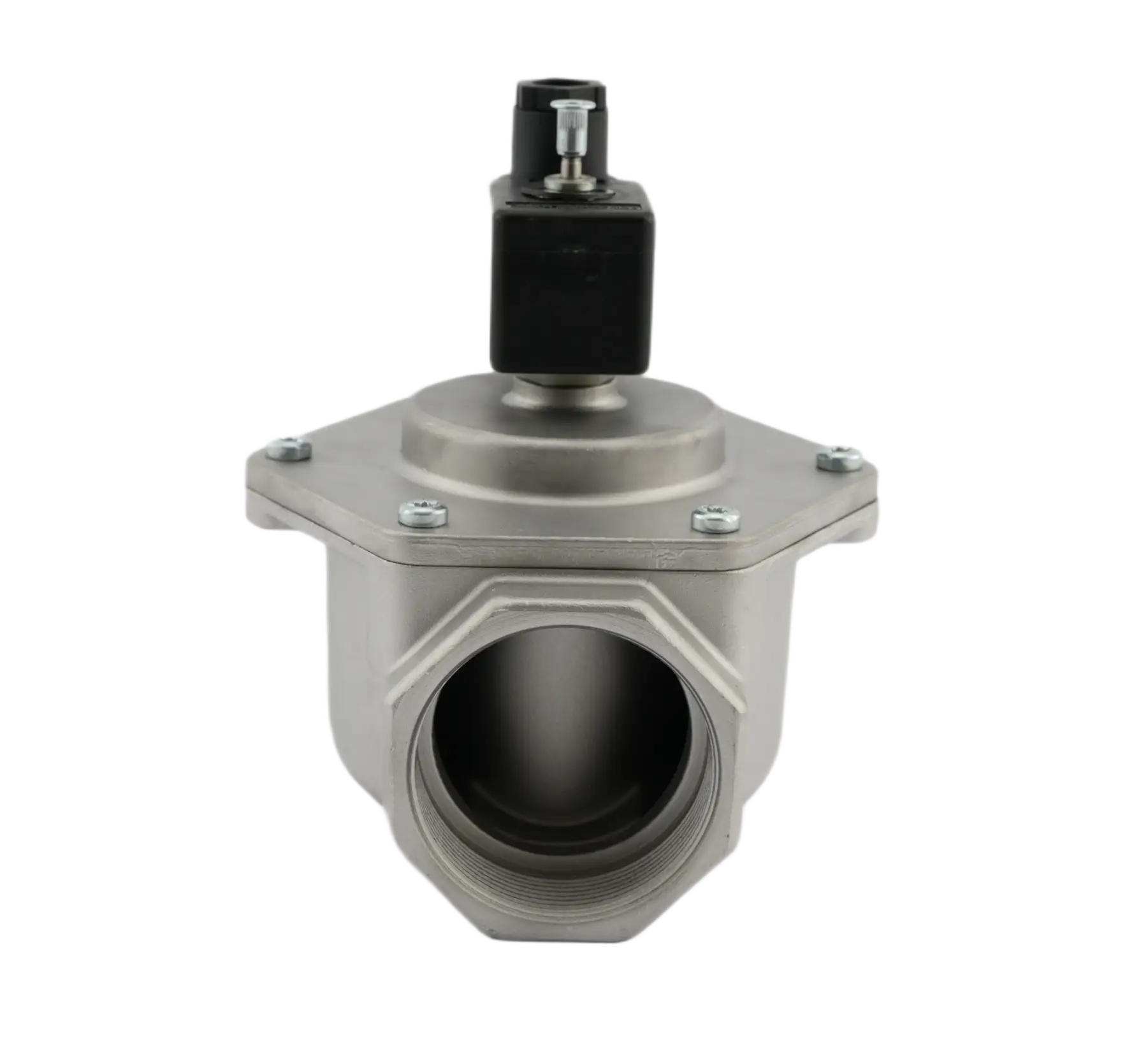

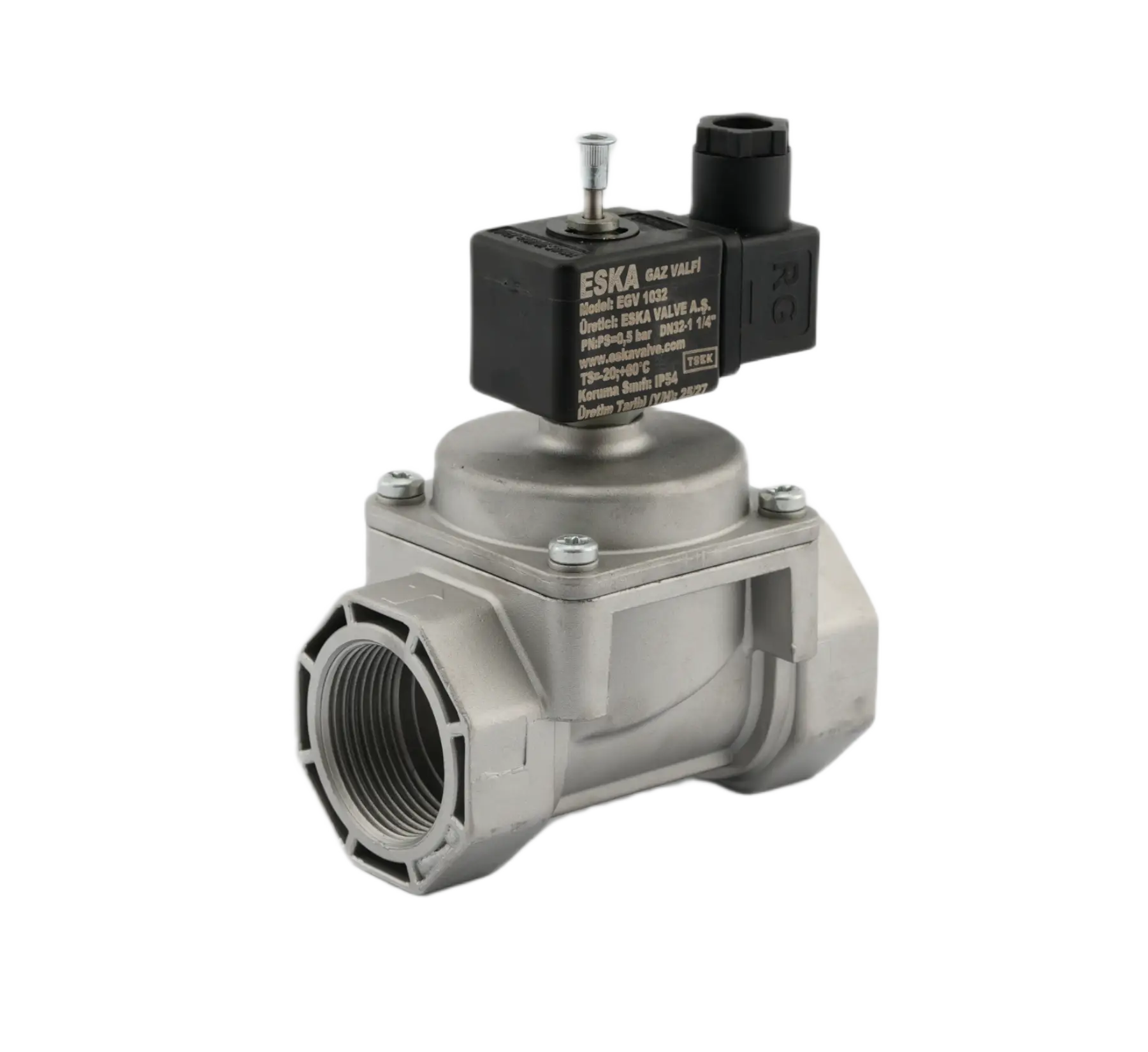

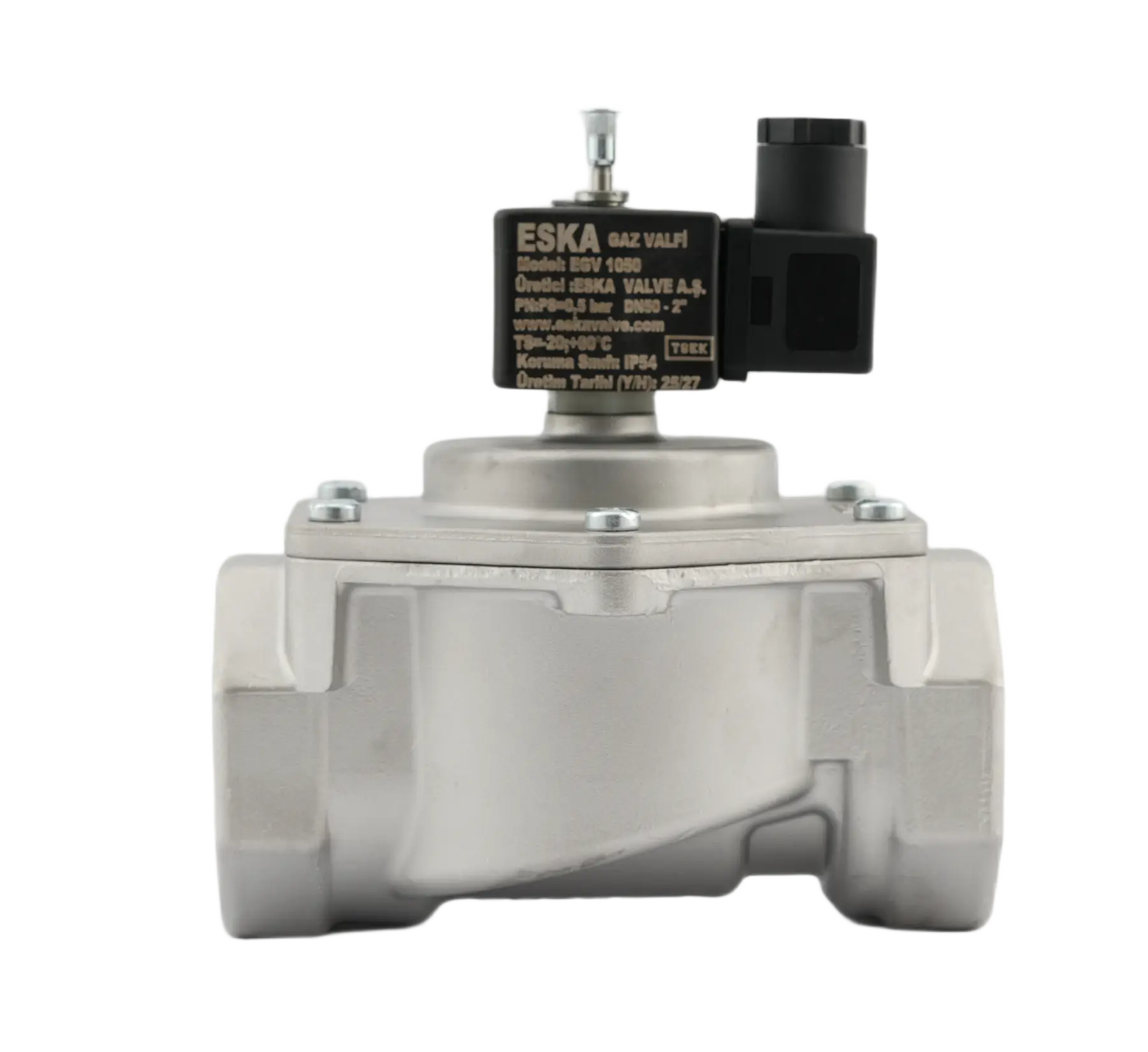

EGV 1032-1040-1050
EGV 1032-1040-1050

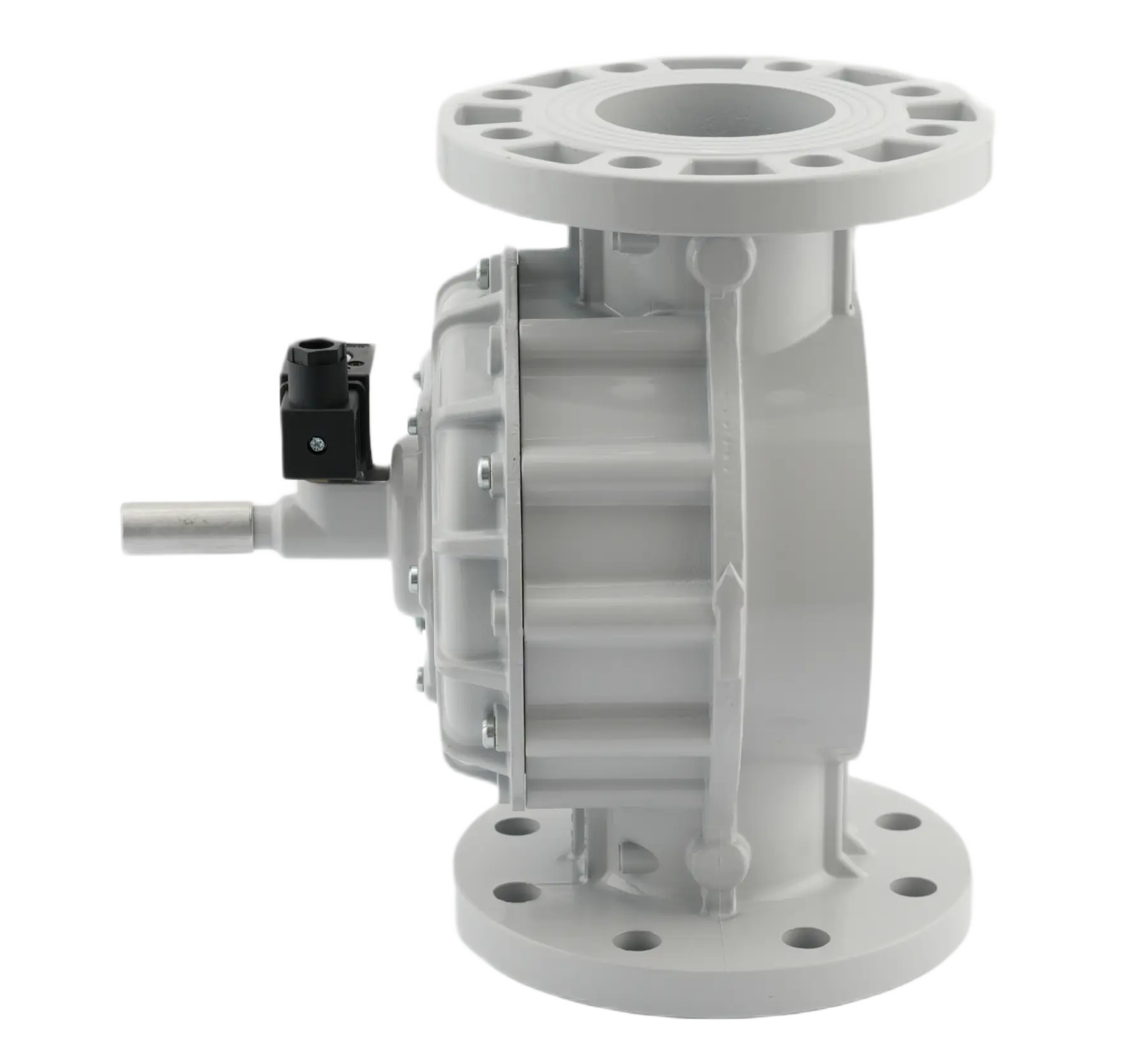

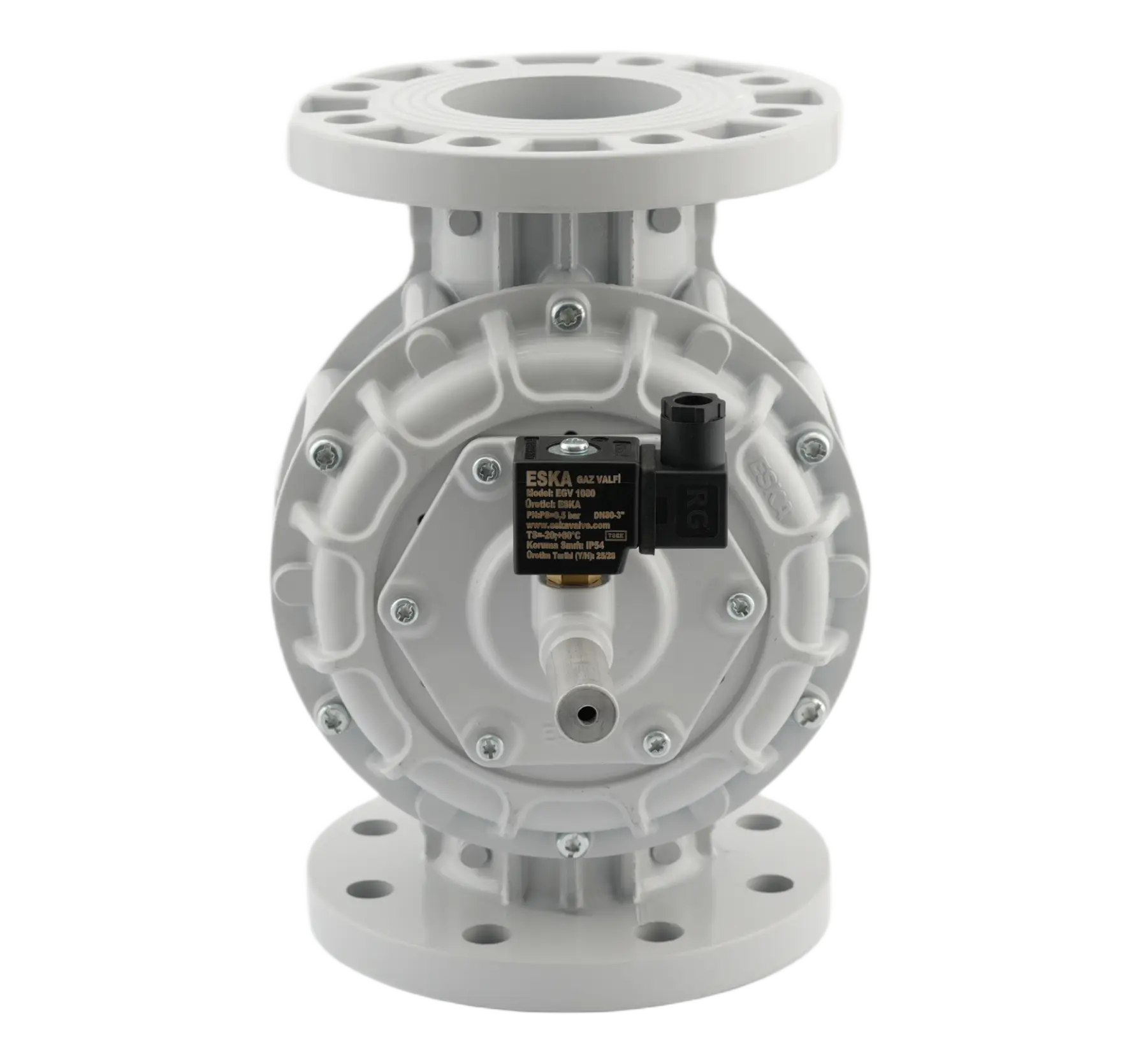

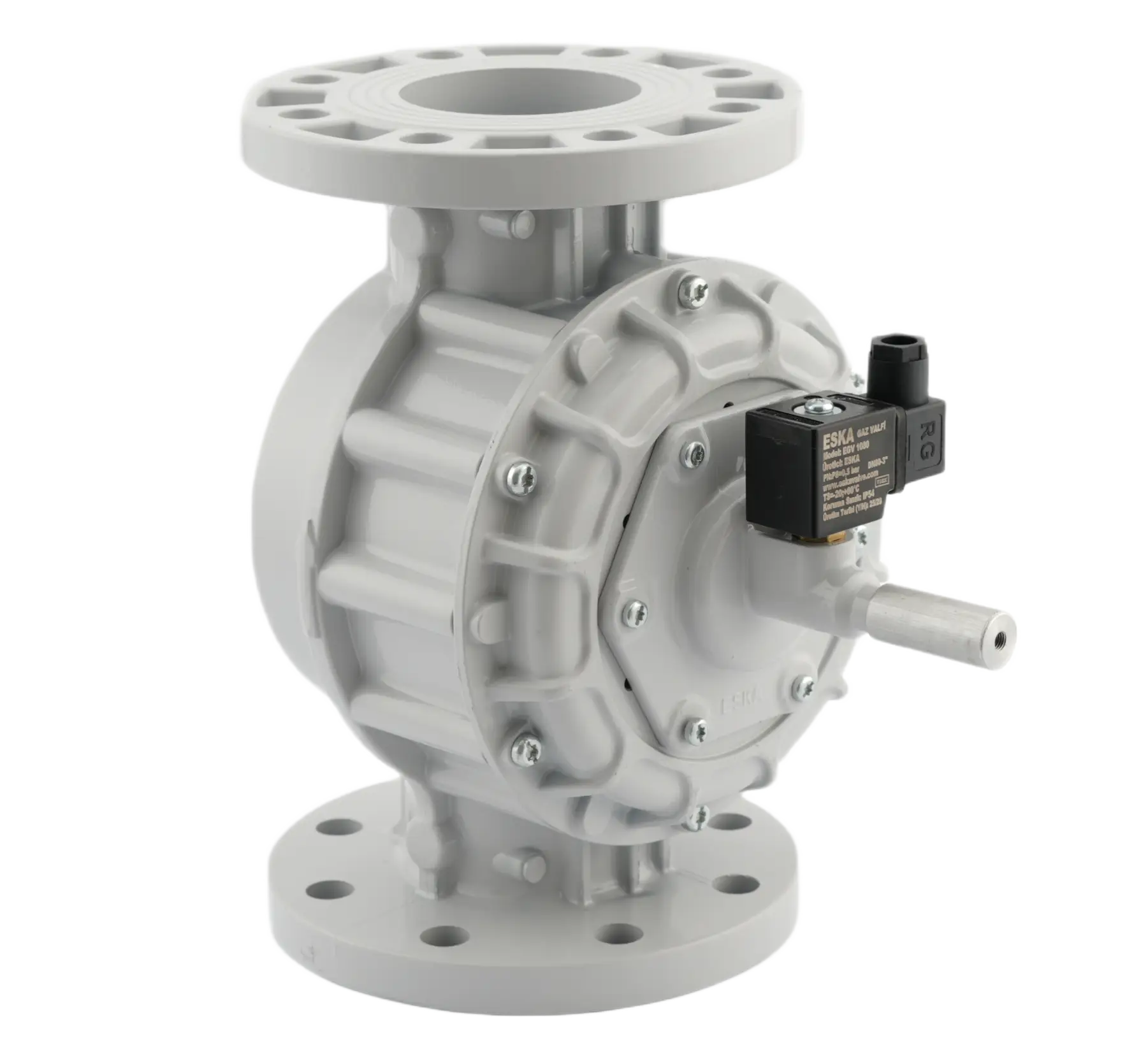

EGV 1065-1080-1100
EGV 1065-1080-1100
