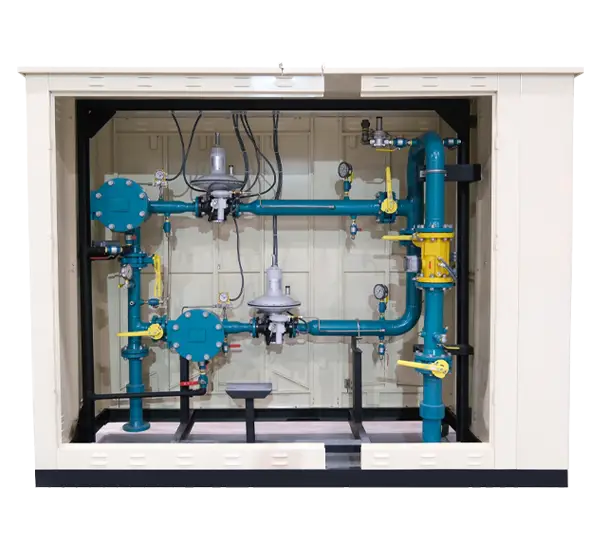

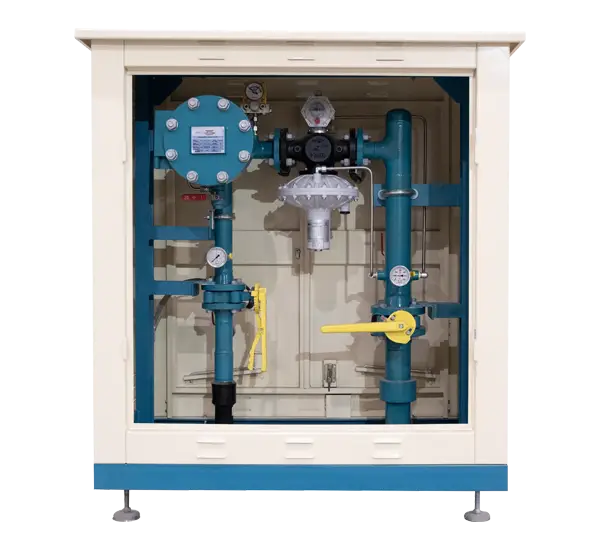

The term "RMS" refers to "Regulating and Metering Station," which is legally and technically recognised in Turkish as "Gaz Basıncı Düzenleme ve Ölçüm İstasyonu." Within the scope of our product portfolio, RMS stations are classified into distinct categories, including RMS-A (Compact, Containerised, and Twin Unit types), RMS-B, RMS-C, and skid-mounted systems. These Pressure Reduction and Measurement Stations (RMS) serve the operational purpose of reducing medium- to high-pressure natural gas from the transmission line to a regulated pressure level and facilitating accurate measurement of gas consumption. Natural gas enters the RMS facility through a designated inlet valve, subsequently passes through filtration units designed to eliminate particulate matter, and then undergoes pressure regulation via certified pressure-reducing devices. This series of operations ensures the delivery of natural gas at a stable and predefined outlet pressure level. Following pressure regulation, the gas is directed to the metering unit, which is configured either as a single-line or as a multi-line system depending on the operational design. To maintain continuity of service during scheduled maintenance or unforeseen malfunctions, gas pressure regulation and measurement units may be constructed with a dual-line configuration. This dual-line system provides redundancy, thereby ensuring uninterrupted gas supply and compliance with applicable safety and reliability standards.


TECHNICAL SPECIFICATIONS

The technical specifications of the products are set forth below. These values may differ based on specific station parameters, including but not limited to outlet flow rate, outlet pressure, and inlet pressure range.

Definitive technical data is provided on the product's identification label.


Pressure Icon
Scale Icon
Application Area
Applicable in gas transmission and distribution networks, as well as in commercial and industrial gas installations
Compatible Fluids
Natural gas, air, LPG, and other non-corrosive gases
Inlet Pressure Range
1 - 25 bar (Subject to project requirements) (Up to 75 bar for RMS-A configurations)
Outlet Pressure Range
0.3 - 4 bar (Subject to project requirements) (Up to 20 bar for RMS-A configurations)
Capacity Range
50 - 20,000 m³/h (Subject to project requirements) (Up to 1,000,000 m³/h for RMS-A configurations)
Nominal Diameters
DN25-DN300 (Determined by project specifications)
Flange Standards
PN or ANSI compliant
Number of Lines
Single or dual line setup (Project-dependent)
Operational Temperature Limits
-20°C to +60°C
Accuracy Class – Outlet Pressure Deviation:
AC5/AC10
Integrated Filter
Included
Dimensions
To be determined in accordance with project design
Standards and Certification
Complies with Botas, TS EN 12186, ASME, ISO 9001, ISO 14001, ISO 45001
