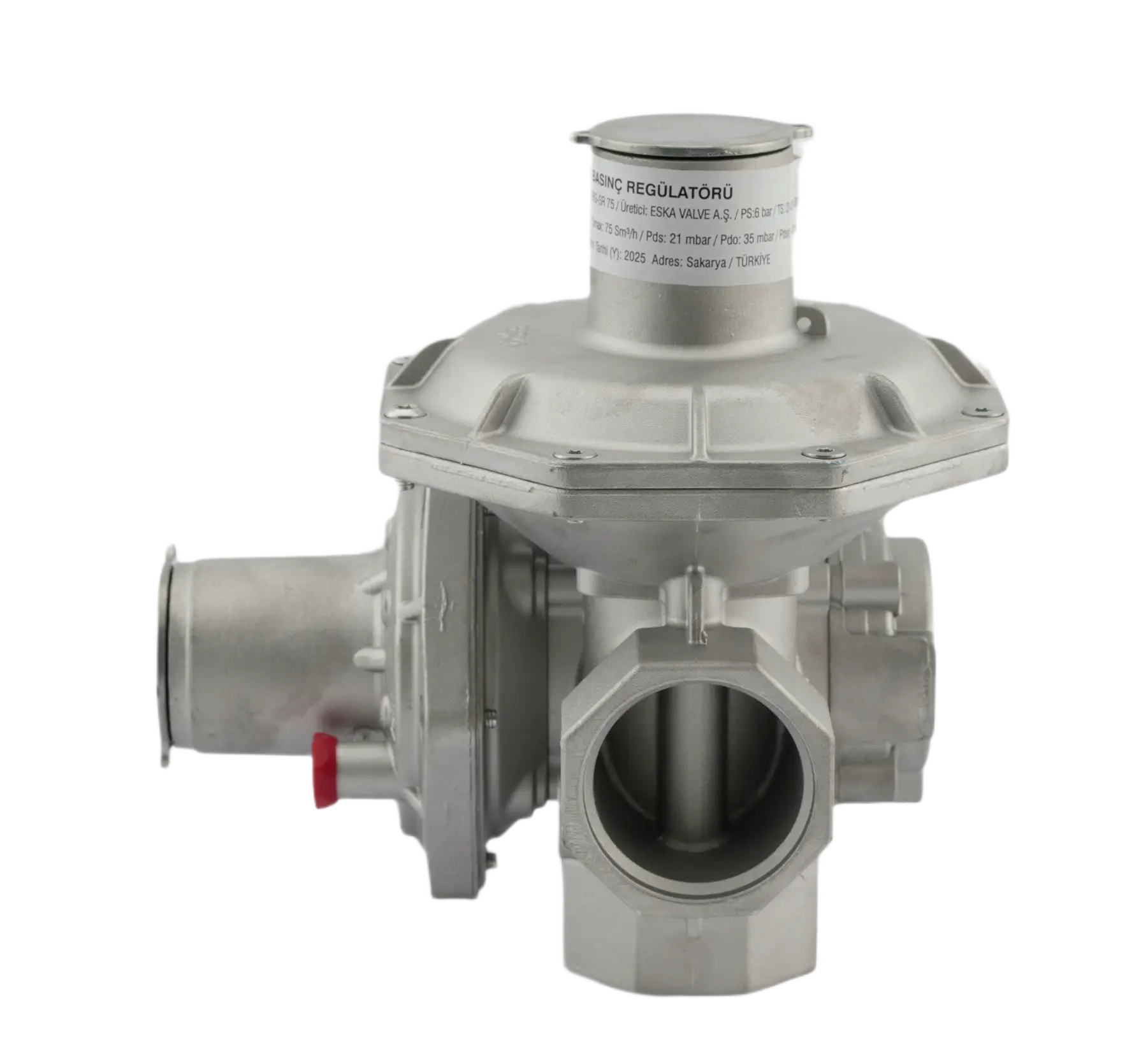

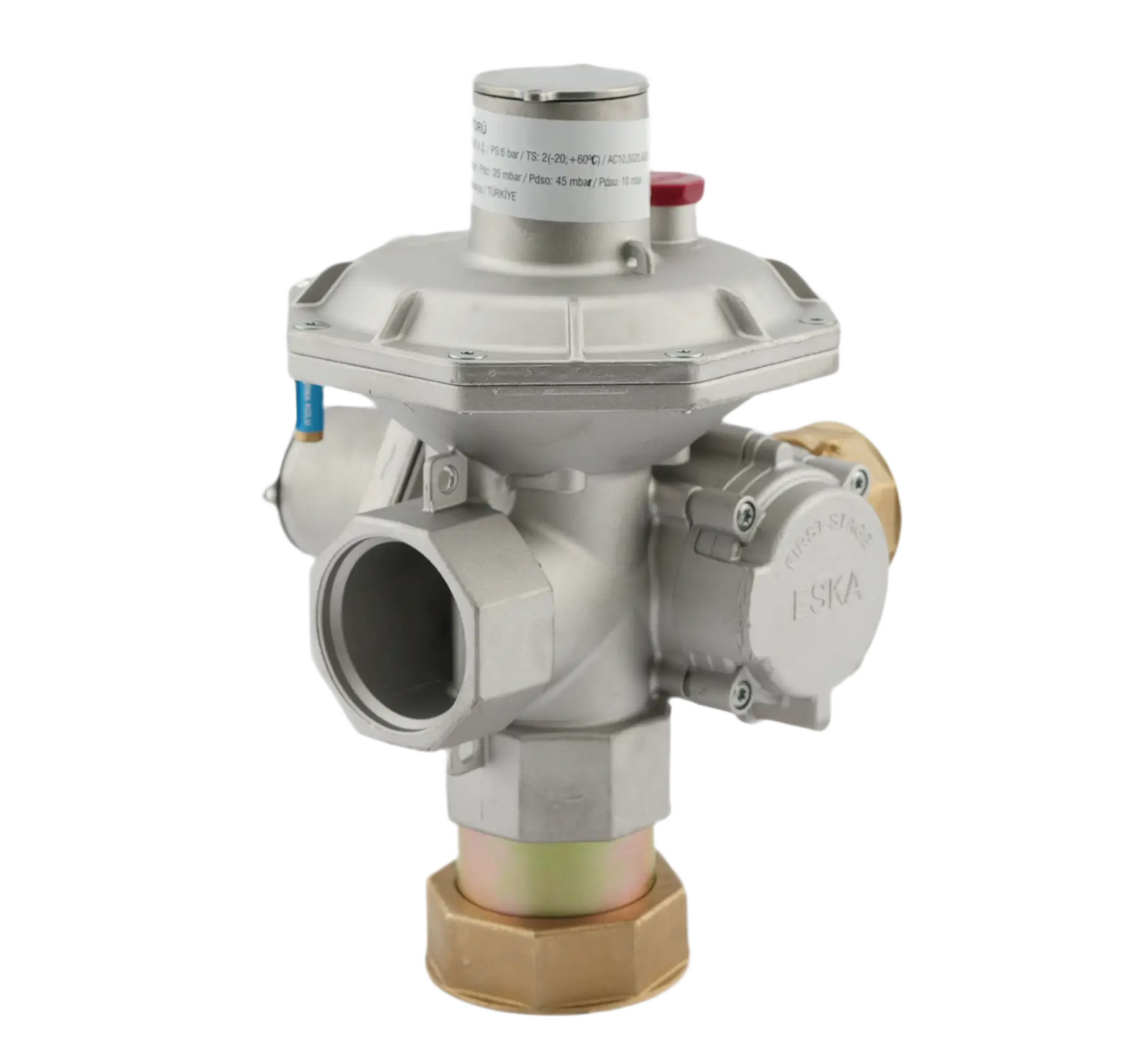

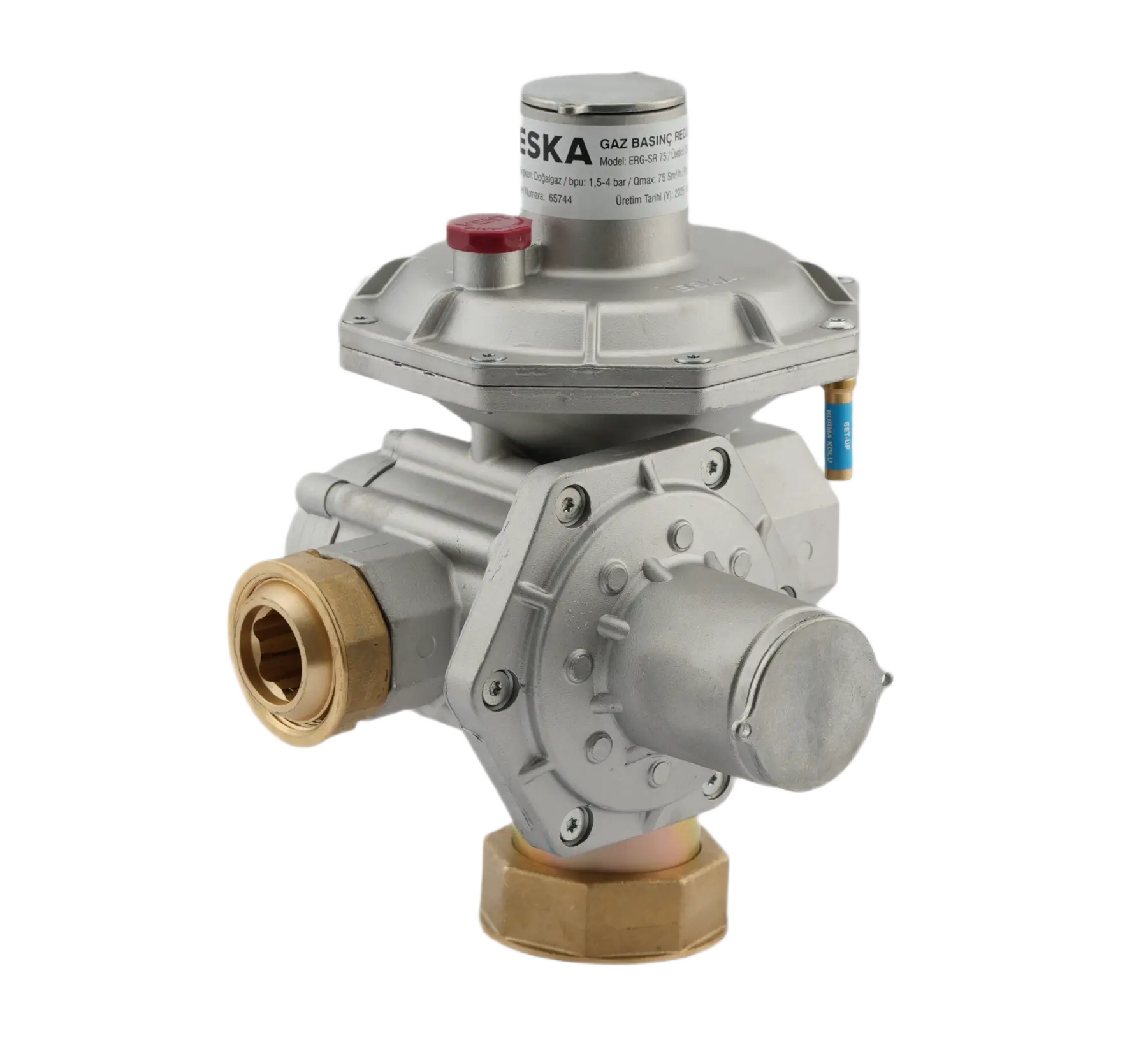

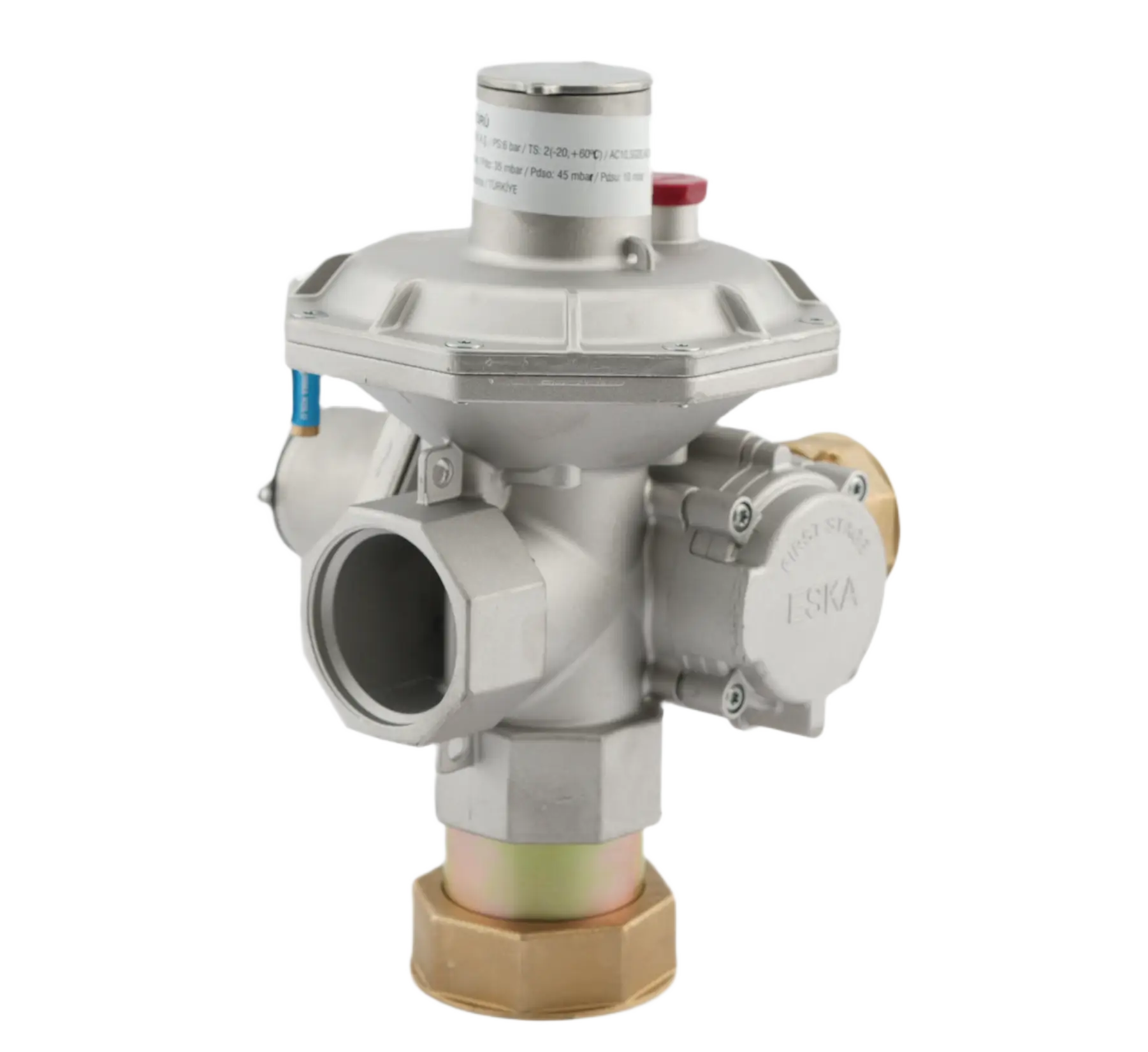

ERG-SR

DOUBLE STAGE GAS PRESSURE REGULATOR with OPSO

COMMERCIAL AND DOMESTIC USE

RELIABLE AND ACCURATE

ERG-SR

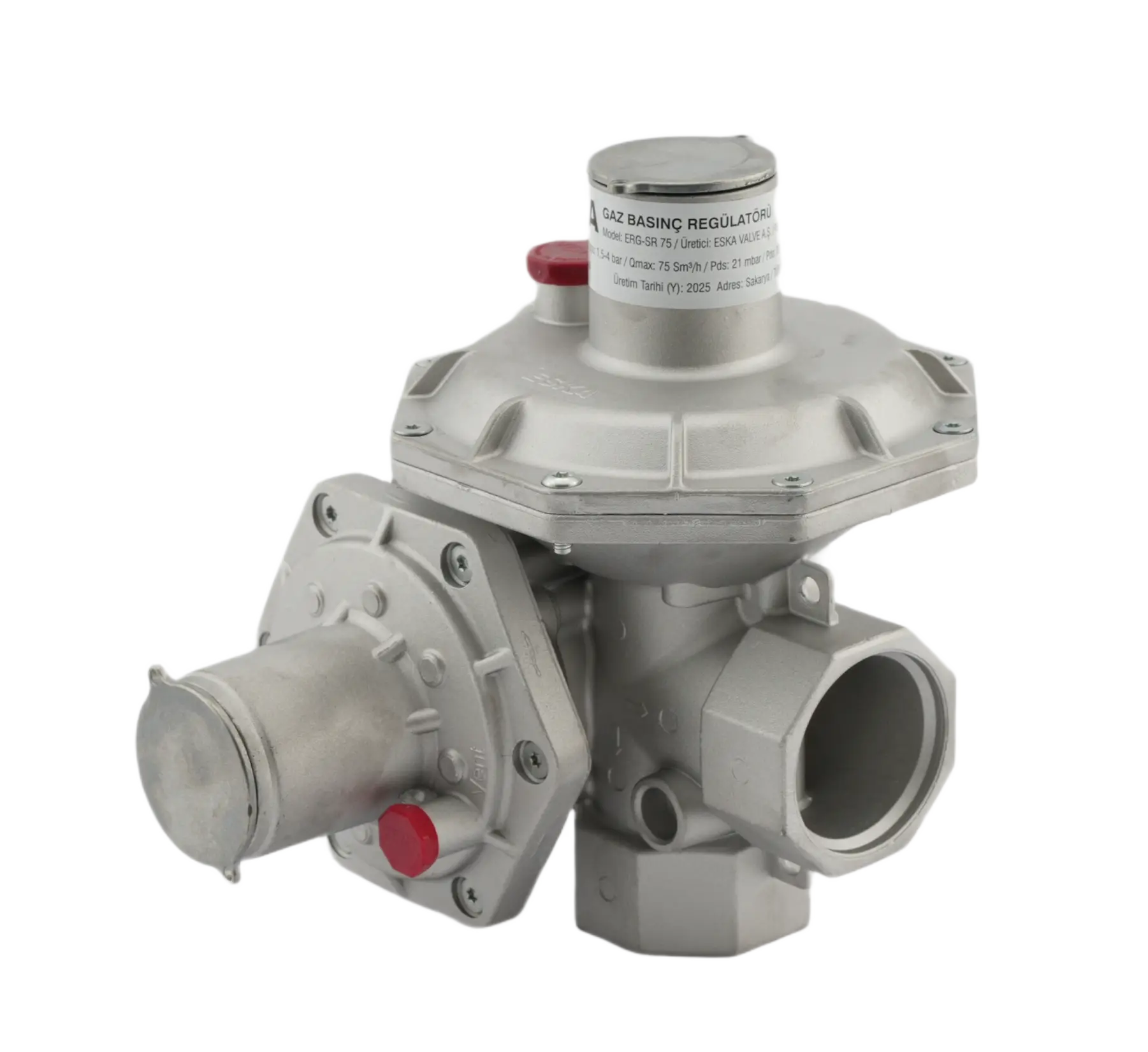

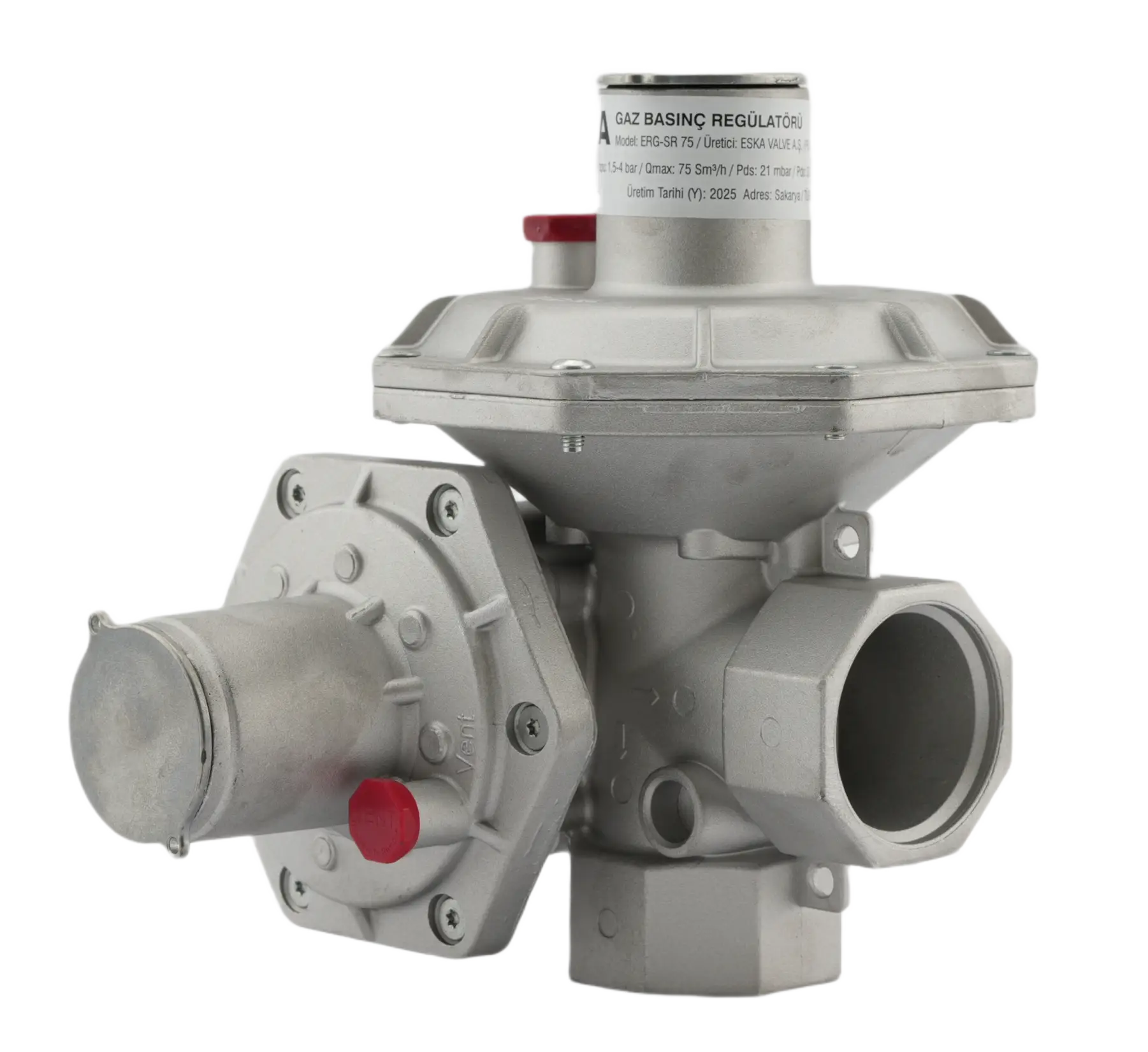

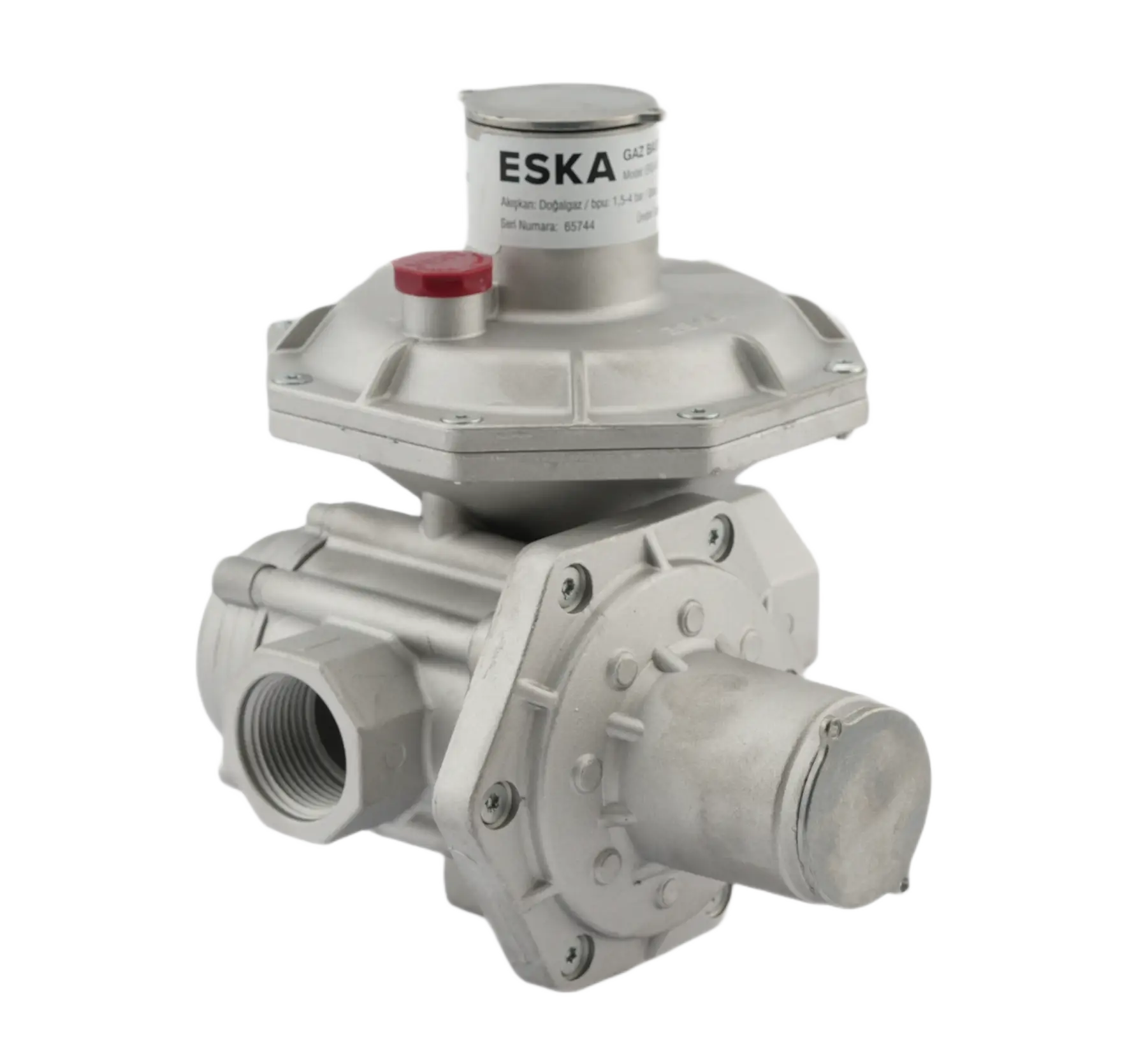

ESKA ERG-SR Series double stage gas pressure regulator is used on gas line to reduce inlet pressure to desired outlet pressure.

It is suitable for both commercial and domestic usage where can be directly installed to gas meters with high operational reliability and outlet pressure accuracy.

The regulators are manufactured according to Ped Directive 2014/68/EU. The functional tests are performed according to EN334.

Natural gas regulator

Residential Natural Gas Regulator

Specifications

  • MediumNatural Gas, LPG and Non-Corrosive Gases
  • Pressure ClassPN6
  • Maximum inlet pressure6 bar
  • Minimum inlet pressureDepending on your request, can start as low as 0,5 bar.
  • Outlet pressure range15 to 360 mbar.
  • Flow range/Capacity50-75-100 m3/h
  • Operating temperature-20... + 60°C (optional : -40... +60°C)
  • AssemblyVertical and Horizontal Position
  • FilterIncluded
Specifications

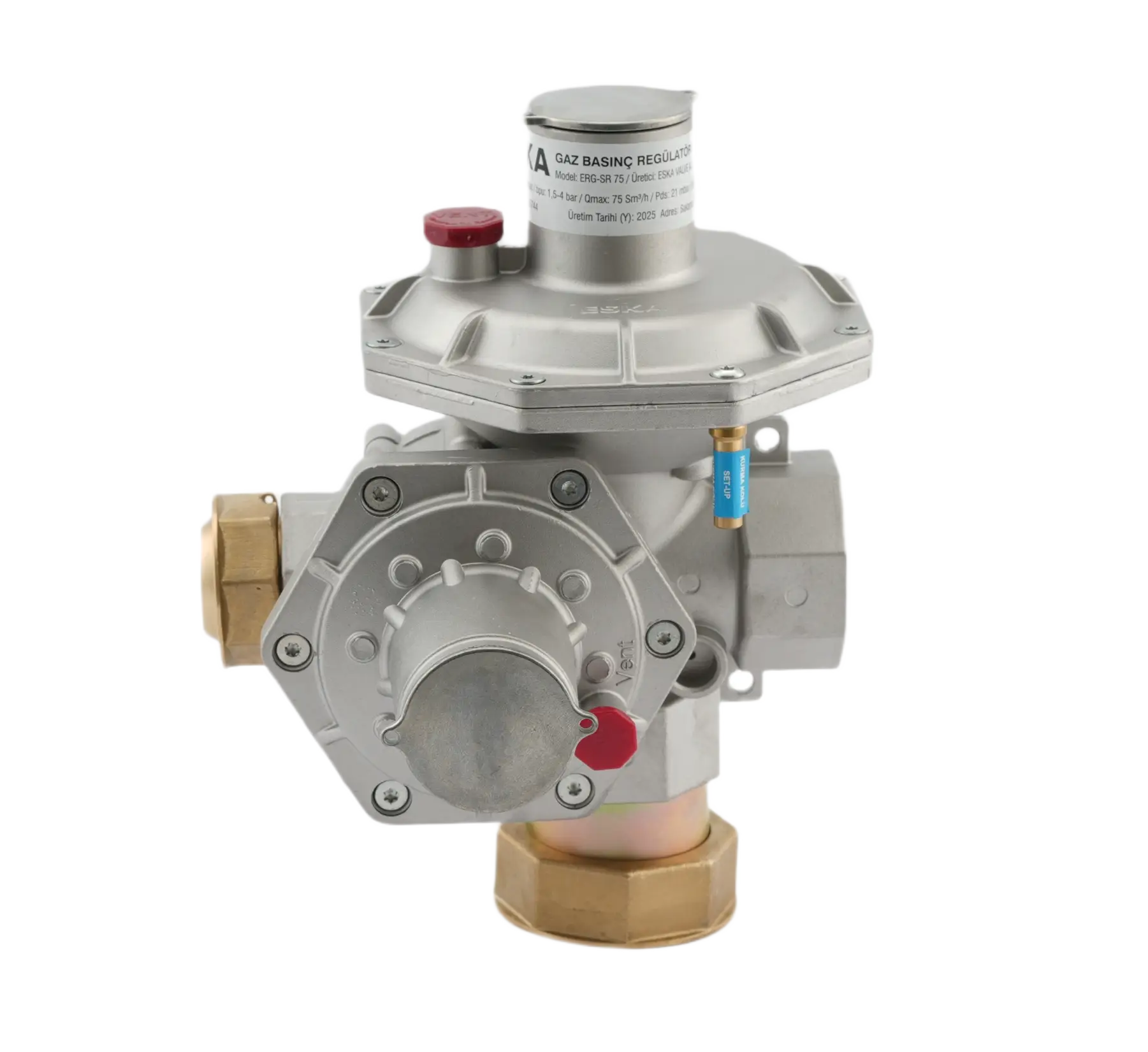

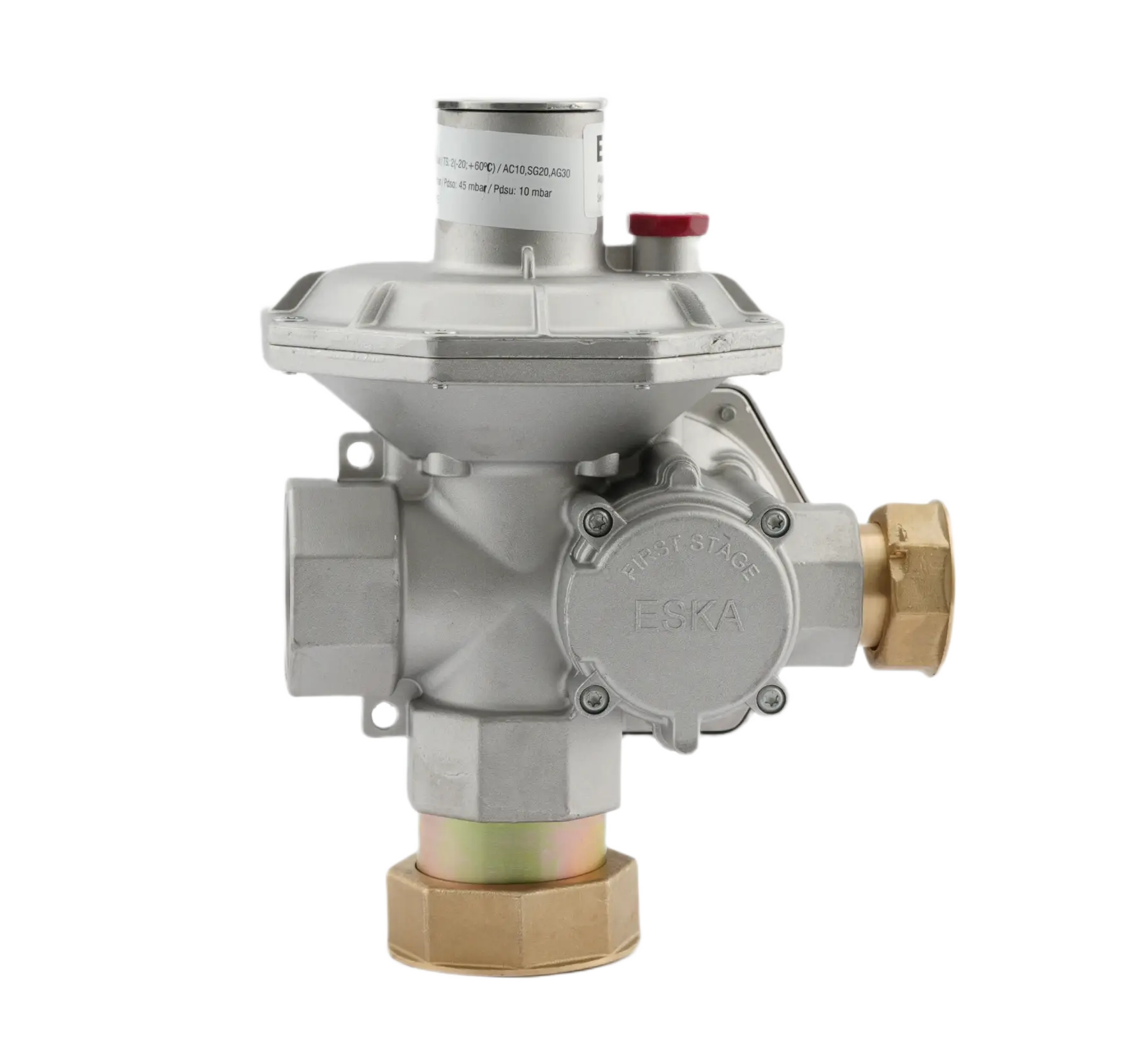

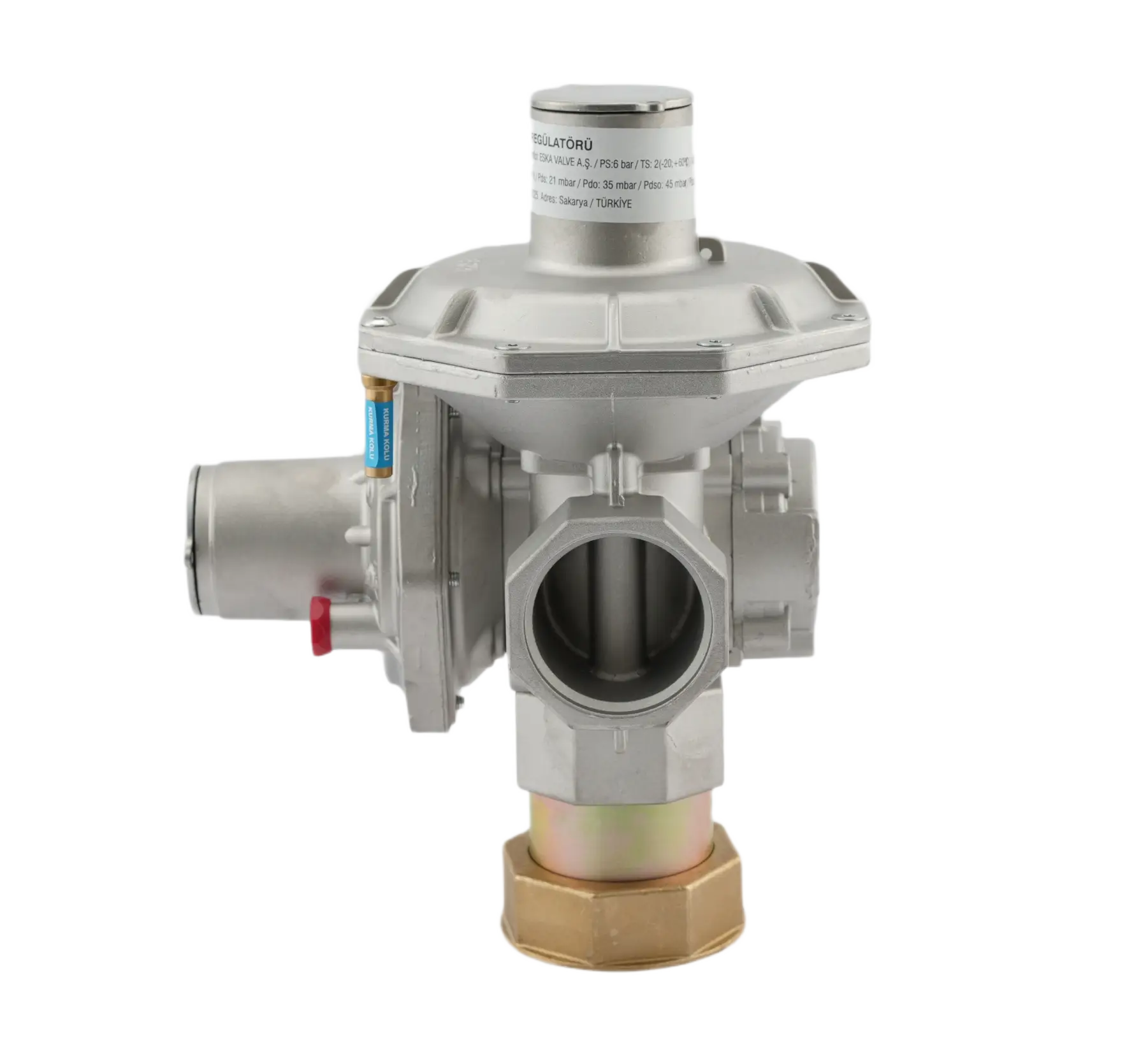

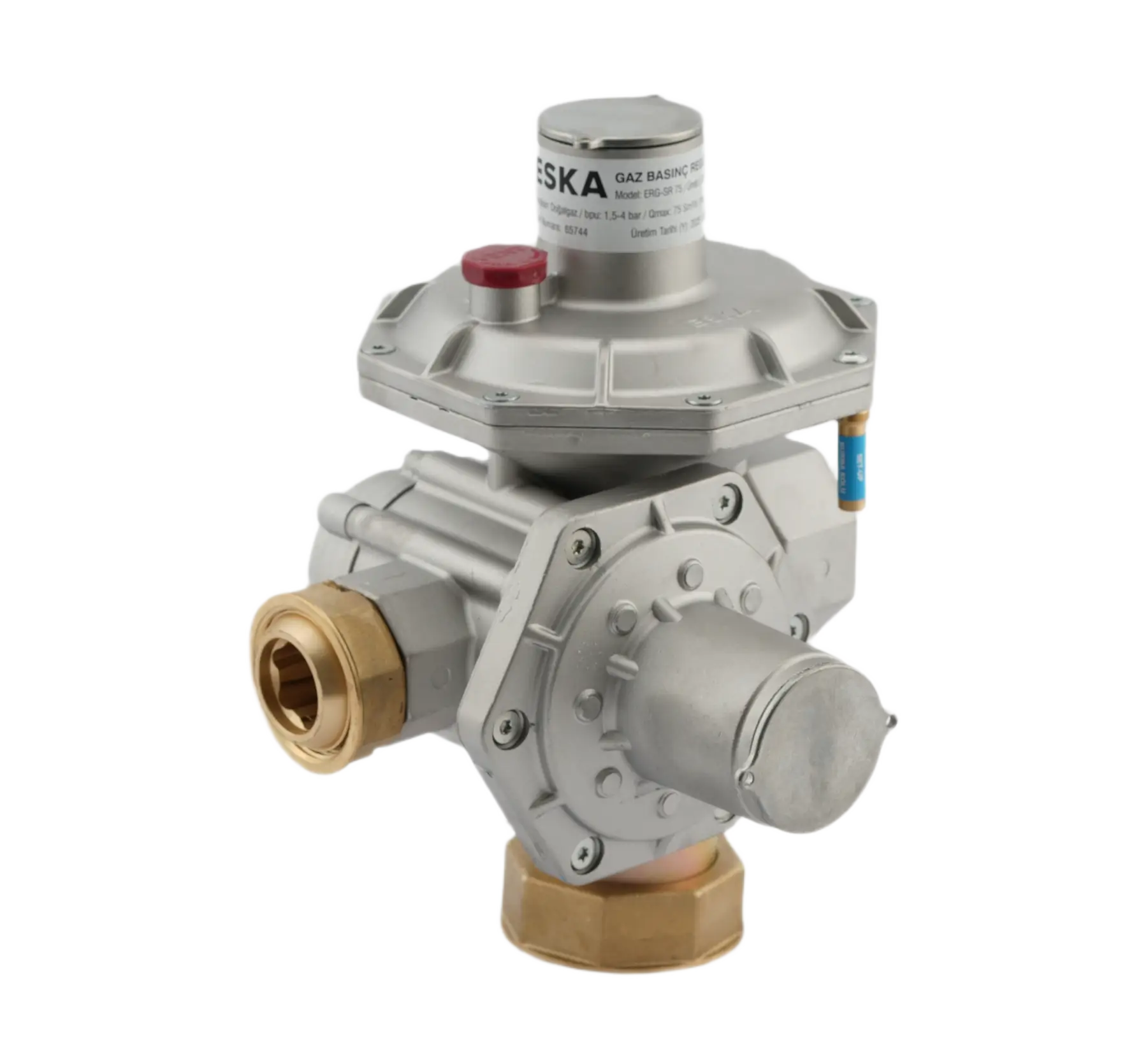

Different Configurations

Inline
Inline
Angle
Angle
Without Connection
Without Connection

The modular concept of ERG-SR and wide range availability of inlet and outlet connections from DN20 to DN50 with different thread standard such as BSP,BSPT,NPT,NPP allow you to customize it as you need.

Connection types/size Download Catalogue

Design and Accessories

Design and Accessories

The ERG-SR Series gas pressure regulator body consists of:

  • Valve housing
  • Connections
  • Filter
  • Ventilation console
  • Integrated security valves (OPSO / UPSO / Relief)
